Background
Ahnfeltiopsis P.C. Silva et DeCew belongs to Gigartinales F. Schmitz, which is considered to be one of the economic marine algal taxa as an important source of carrageenan (Craigie 1990; Donald et al. 1993). Particularly, it has been known that this alga can be used as a potential commercial material of antioxidant compounds in the medicine, food, pharmaceutical, and cosmetic industries in Hawaii (Kelman et al. 2012).
This genus was first proposed by Silva and DeCew in Silva (1979), but was invalid. Later, the generic name, Ahnfeltiopsis, was validly published. It was characterized by internal cystocarps and a heteromorphic type of life history in which upright unisexual gametophytes alternate with a crustose tetrasporophyte (Silva and DeCew 1992; Masuda 1993). However, it has been reported that Ahnfeltiopsis is polyphyletic in molecular phylogeny (Fredericq and Lopez-Bautista 2002; Maggs et al. 2013; Calderon and Boo 2016; Calderon et al. 2016; the present study). This suggests that the generic features should be revised for delimitation of Ahnfeltiopsis.
Ahnfeltiopsis involves 33 species distributed from temperate to tropical waters (Dawson 1954; Masuda 1993; Silva et al. 1996; Guiry and Guiry 2017). Among these, three species, Ahnfeltiopsis catenata (Yendo) Masuda, A. paradoxa (Suringar) Masuda, and A. flabelliformis (Harvey) Masuda, had been reported in Korea (Kim et al. 2013). However, recently, the former two species have been transferred to Besa Setchell based on molecular and morphological examination (Calderon et al. 2016). Accordingly, only A. flabelliformis in this genus is currently recorded in the Korean marine algal flora. A gigartinalean species was collected from Jindo of the southern coast of Korea during a survey of marine algal flora. Based on the morphology and molecular data, this species was identified as Ahnfeltiopsis concinna, which was established from Hawaii (Dawson 1961), and is newly recorded in Korea in the present study.
Methods
Specimens for this study were collected from Jindo located in southern coast of Korea. Taxonomic data were obtained from fresh, liquid-preserved, and herbarium specimens. Liquid-preserved material was stored in a 10% solution of formalin/seawater. For anatomical observations, the material was cleared in 5–10% NaOH in distilled water for 2–7 days and then rinsed in distilled water. Blades dissected from the cleared materials were hand sectioned, transferred to a slide with a drop of distilled water, and mounted in pure glycerin. In some instances, a smearing method for microscopic examination was employed. Measurements are given as width and length. For photographs, the sections were stained with 0.5–1.0% aqueous methylene blue, aniline blue, or hematoxylin. For permanent slides, the glycerin was exchanged with 10–20% corn syrup.
Total genomic DNA was extracted from silica-gel-preserved sample using the DNeasy Plant Mini Kit (Qiagen, Hilden, Germany) according to the manufacturer’s protocol. Before extraction, dried material was crushed with liquid nitrogen using a mortar and pestle. Concentrations of extracted DNA were assessed by using gel electrophoresis on a 1% agarose gel. Extracted DNA was used for amplification of ribulose-1, 5-bisphosphate carboxylase/oxygenase large subunit (rbcL) regions and cytochrome oxidase I (COI). PCR amplifications were performed in a TaKaRa PCR Thermal Cycler Dice (TaKaRa Bio Inc., Otsu, Japan). The PCR products were moved to Macrogen Sequencing Service for sequencing (Macrogen, Seoul, Korea). The sequences of PCR primers for amplification are as follows: rbcL (forward: 5′ GGAGGATTAGGGTCCGATTCC 3′, reverse: 5′ CTTCCGTCAATTCCTTTAAG 3′), COI (forward: 5′ GCTGCGTTCTTCATCGATGC 3′, reverse: 5′ TCCTCCGCTTATTGATATGC 3′) (Lin et al. 2001).
Sequences for the rbcL region were aligned using BioEdit (Hall 1999). Phylogenetic analyses were performed using neighbor joining, maximum-likelihood, and maximum parsimony methods with Mega 6 program (Tamura et al. 2013). Bootstrap values were calculated with 1000 replications. RbcL and COI sequences of other species were obtained from GenBank. Ahnfeltia plicata was used as an outgroup.
Results and discussion
Type locality: Hawaii (Dawson 1961)
Korean name: Go-un-bu-chaet-sal nom. nov. (신칭: 고운부챗살)
Specimens examined: NIRBAL0000146348, PKNU 0000127011 - 0000127015, PKNU 0000127025 (Jindo: 13.ii.2014)
Habitat: Growing on rock near upper to lower intertidal
Morphology: Thalli 5–8 cm high, terete to subterete at the lower portion, somewhat compressed at the upper portion, fan-shaped, brown to yellow in color, cartilaginous in texture, attached to substratum by discoid holdfast (Fig. 1 and Fig. 2a); main axes issuing dichotomous branches at short intervals; branches divided dichotomously to subdichotomously, with rounded or blunt apex, 1–2 mm wide, 200–300 μm thick; proliferations rare, arranged pinnately to irregularly; multiaxial; cortex consisted with small and pigmented cells (Fig. 2c, d), five to eight round cell layers thick, 2–3 × 4–5 μm; pseudoparenchymatous medulla compact (Fig. 2a), ellipsoid in transverse section (Fig. 2b), without hypha-like filaments, 200–300 × 80–100 μm; gonimoblast filaments developing inwardly (Fig. 3a, b), carposporophytes producing masses of carposporangia; carposporangia round (Fig. 3c), 10–12 μm in diam.; cystocarps formed at middle portion of branches, internally immersed in medulla, surrounded by some layers of secondary medullary cells, with carpostomes (Fig. 3c, d). Male and tetrasporangial plants were not collected during the present study.
Ahnfeltiopsis was established to accommodate several species, which had been previously assigned to Ahnfeltia E.M. Fries and Gymnogongrus C. Martius (Silva and DeCew 1992) and which have common internal cystocarps with specialized pores (carpostomes) and crustose tetrasporic life history (Silva and DeCew 1992; Masuda 1993). However, since the genus is known to be polyphyletic based on molecular data (Fredericq and Lopez-Bautista 2002; Maggs et al. 2013; Calderon and Boo 2016; Calderon et al. 2016; the present study), the generic delimitation cannot be used for Ahnfeltiopsis. Recently, some combined features of female structures have been adopted for this genus (Calderon and Boo 2016; Calderon et al. 2016). The vegetative feature of multiaxial thalli with a compact and pseudoparenchymatous medulla is also common in the genus (Masuda 1993). Even though male and tetrasporangial plants were not observed, our gigartinalean species collected from Jindo, Korea, during this study can be referred to Ahnfeltiopsis based on these vegetative and female features in addition to the gross morphology. According to the original and other publications (Silva and DeCew 1992; Masuda et al. 1994; Braune and Guiry 2011), Ahnfeltiopsis concinna is distinct from similar species within the genus by its small size (up to 8 cm) thalli, terete to subterete thalli, cartilaginous in texture, dichotomous branches, rarely produced proliferations, and an absence of hypha-like filament in the medulla. This Korean alga shares these characteristics and is distinguished from A. flabelliformis which is currently recorded in Korea (Kang 1966, 1968; Lee and Kang 1986; Lee and Kang 2002; Boo and Ko 2012; Kim et al. 2013), by the thallus feature. It has terete to subterete thalli particularly at the lower portion, while A. flabelliformis shows compressed thalli (Masuda 1987, 1993; Masuda et al. 1994; Yoshida 1998; Lee 2008).

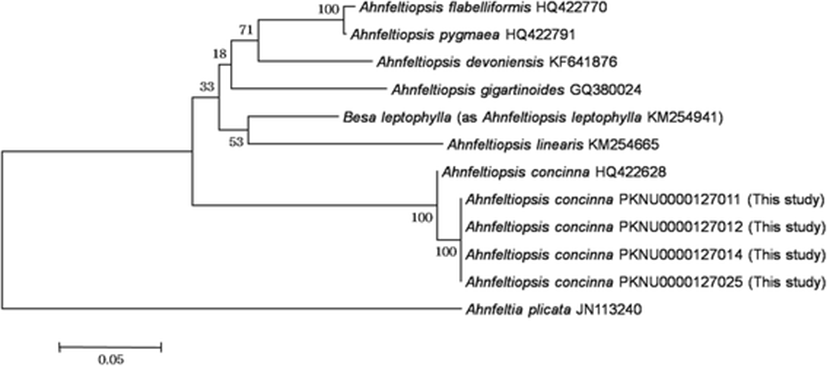

In a phylogenetic tree based on rbcL sequence data (Fig. 4), the Korean alga nests in the same clade with A. concinna from Japan but forms a sister clade to A. concinna from Mexico and Hawaii (type locality). However, the genetic distance among those sequences was calculated as 0.1–1.3%, considered to be intraspecific variation within the genus. In general, the value of interspecific divergence in the Gigartinaceae and Peyssonneliaceae within the Gigartinales varies from 2.8 to 16.5% (Hommersand et al. 1994; Kato et al. 2009). Moreover, the Korean alga also nests in the same clade with A. concinna from the type locality based on the COI sequence data (Fig. 5), with the genetic distance of 1.1% between the two sequences.
This morphological and molecular evidence leads to the conclusion that our specimens from Jindo, Korea, should be identified as Ahnfeltiopsis concinna originally described from Hawaii. This species is newly recorded in Korea in the present study.
Conclusions
A gigartinalean species was collected from Jindo, Korea, during a survey of marine algal flora. This species was identified as Ahnfeltiopsis concinna, which was originally described from Hawaii, based on morphological and molecular data. This is the first record of the species in the Korean marine algal flora.
