RESEARCH ARTICLE

Concentration of heavy metals in shellfishes and health risk assessment from Korean coastal areas

Ka Jeong Lee1,*https://orcid.org/0000-0001-9273-8384, Eun Hye Kang1https://orcid.org/0000-0002-2050-6944, Minchul Yoon2https://orcid.org/0000-0003-3811-2609, Mi Ra Jo1https://orcid.org/0000-0002-0593-3489, Hong Sik Yu1https://orcid.org/0000-0001-9520-2016, Kwang Tae Son1https://orcid.org/0000-0002-7294-3345
Author Information & Copyright
1Food Safety and Processing Research Division, National Institute of Fisheries Science, Busan 46083, Korea
2Southeast Sea Fisheries Research Institute, National Institute of Fisheries Science, Tongyeong 53085, Korea
*Corresponding author: Ka Jeong Lee, Food Safety and Processing Research Division, National Institute of Fisheries Science, Busan 46083, Korea, Tel: +82-51-720-2631, Fax: +82-51-720-2619, E-mail:kajlee@korea.kr

Copyright © 2022 The Korean Society of Fisheries and Aquatic Science. This is an Open Access article distributed under the terms of the Creative Commons Attribution Non-Commercial License (http://creativecommons.org/licenses/by-nc/4.0/) which permits unrestricted non-commercial use, distribution, and reproduction in any medium, provided the original work is properly cited.

Received: Aug 10, 2022; Revised: Oct 24, 2022; Accepted: Nov 18, 2022

Published Online: Dec 31, 2022

Abstract

Shellfish are exoskeleton-bearing aquatic invertebrates that consume various organic and inorganic substances floating in seawater through filter feeding. Heavy metals are known as absorbed and accumulated in seawater. Some of the toxic heavy metals are highly accumulated in seawater, and exposure to them can cause a variety of risks to the human body. Since Koreans like to eat seafood, they are more likely to be exposed to contaminated seafood with heavy metals. In this study, nine types of heavy metals were analyzed on ten different shellfish species in the coastal area of South Korea. The risk assessment was also done on shellfish in which heavy metals were detected. Zinc (Zn) and copper (Cu) were identified at an average of 56.7 mg/kg (6.70 to 466 mg/kg) and 13.2 mg/kg (0.064 to 143 mg/kg), respectively. Lead (Pb) average of 0.208 mg/kg (0.000750 to 1.02 mg/kg), cadmium (Cd) average of 0.454 mg/kg (0.0388 to 1.56 mg/ kg) and mercury (Hg) average of 0.0266 mg/kg (0.00548 to 0.174 mg/kg) were identified. Additionally, arsenic (As), chromium (Cr), nickel (Ni), and silver (Ag) were also identified as average concentrations of 4.02 (0.460 to 15.0 mg/kg), 0.167 (< limit of quantification [LOQ] to 0.820 mg/kg), 0.281 (< LOQ to 1.46 mg/kg), and 0.158 mg/kg (< LOQ to 1.15 mg/kg). The result indicates that the monitoring results of heavy metals in most shellfish satisfied the Korean standard. However, Pb and Cd have exceeded some foreign standards, such as the United States and the EU. The permissible human exposure calculated using the heavy metal intake and detection amount was lower than the Joint FAO/WHO Expert Committee on Food Additives human safety standard, and the risk of heavy metals from shellfish consumption was at an acceptable level.

Keywords: Heavy metals; Shellfish; Health risk assessment; Korea

Introduction

Various types of pollutants in sewage drainage or marine wastewater continuously flow into coastal waters from land. Among them, heavy metals flow into sediments or are adsorbed and accumulated in aquatic organisms because of their physicochemical properties. These characteristics, enable the monitoring of heavy metals in marine organisms to directly determine the pollution level of marine ecosystems and predict the effects on the human body. Thus, several studies have been conducted on this in each country. Korea and Japan are countries that consume a lot of seafood. In Korea, the annual intake of seafood per person is 58.4 kg/year, which is relatively higher than that of Norway (53.3 kg/year), Japan (50.2 kg/year), and China (39.5 kg/year) (FAO, 2016). In particular, shellfish are adherent organisms that rarely migrate, they have a wide distribution and long lifespan. Therefore, it is a useful indicator for identifying the origin and actual condition of pollutants through the identification of heavy metals with strong concentrations (Viarengo & Canesi, 1991). In addition, in Korea, heavy metals are highly likely to accumulate in the body because of shellfish consumption; thus, it is essential to evaluate human exposure to heavy metals and risk assessment.

In general, heavy metals are associated with mercury (Hg), cadmium (Cd), lead (Pb), and arsenic (As). They are well known as harmful contaminants. According to the Risk Assessment of Cadmium by MFDS (2016), the exposure of Cd through food was 0.292 μg/kg b.w./day. It was also found that marine products (0.141 μg/kg b.w./day) contributed the most. Joint FAO/WHO Expert Committee on Food Additives (JECFA, 2020) strengthens human exposure safety standards for major heavy metals such as lead, Cd, As, and Hg, and strengthens international standards for heavy metals in food.

In this study, copper (Cu) and zinc (Zn), which are essential heavy metals for the human body, and Hg, Pb, Cd, As, chromium (Cr), silver (Ag), and nickel (Ni), which are non-essential heavy metals, were analyzed in shellfish. Heavy metals are classified into two heavy metals due to their toxicity. Heavy metals were classified into two groups based on their toxicity, essential and non-essential heavy metal. Essential heavy metals are harmless or relatively less harmless at low concentration (Zn, Cu, Iron [Fe], and Cobalt [Co]). Non-essential metals are highly toxic even at low concentration (such as Cd, Hg, As, and Cr) (Kim et al., 2019). Cu and Zn, which are essential heavy metals, have metabolic effects when consumed in an appropriate amount. However, Hg, Pb, and Cd are classified as toxic substances and cause carcinogenesis when accumulated in the human body. In addition, As and Cr cause disease when ingested above the limit value.

Korea is currently conducting heavy metal safety management that focuses on exported shellfish. However, heavy metal safety management of shellfish for domestic use produced in coastal areas of the country is also required.

In this study, nine types of heavy metal monitoring were performed on the different species of shellfish. In addition, a risk assessment was done on shellfish in which heavy metals were detected. This research data is considered to help establish guidelines and reference data for safe seafood consumption.

Materials and Methods

Sample collection

Samples were collected from January to July 2018 by selecting representative species according to regional characteristics in 11 regions, including mussel (26), short neck clam (19), oysters (17), abalone (12), horned turban (11), scallop (6), surf clam (6), ark shell clam (4), comb pen clam (2), and sea squirt (8). The sampling sites are shown in Fig. 1. The collected samples were washed with distilled water according to the sample treatment manual for heavy metal experiment in seafood (MFDS, 2014). After washing, the intestines were removed from the large shellfish and only the muscles and small shellfish were separated and rewashed. The separated samples were frozen at –20°C until analysis. The frozen samples were used for analyses after freeze-drying using a freeze-dryer (OPR-FDT8612, Operon, Gimpo, Korea). In addition, the moisture content of the wet and dry samples was measured according to the food code (MFDS, 2019).

fas-25-12-626-g1
Fig. 1. Sampling sites of shellfishes from the Korean coastal area.
Download Original Figure
Standards and reagents

Nitric acid was used as the reagent for sample pretreatment (Suprapur, 65%, Merck, Darmstadt, Germany). Distilled water was deionized using the Milli-Q water purification system (Millipore, Bedford, MA, USA) to obtain 18.2 mΩ. The species analyzed in this study are Hg, lead, Cd, As, Cr, Cu, Ni, Zn, and Ag. Multi-Element Calibration Standard 3 (PerkinElmer, Waltham, MA, USA) was used as the calibration standard, and the certified reference material (CRM) was 1566b (oyster tissue; NIST, Gaithersburg, MD, USA) to verified the recovery (%). CRM did not contain Cr therefore it was prepared by adding the Cr standard (Fisher Chemical, Waltham, MA, USA). The Hg-certified reference standard (Fisher Chemical) was the calibration standard.

Analytical method

Samples for heavy metal analysis excluding Hg, were used for food code (MFDS, 2019) to ensure the reproducibility and accuracy of the experimental results. The microwave method was applied for pretreatment. In other words, 10 mL of nitric acid was added to 0.5 g of a sample, digested by a microwave digestion system (START D, Milestone, Sorisole, BG, Italy), transferred to a volumetric flask, and used as a sample solution. An inductively coupled plasma mass spectrometer (inductively coupled plasma-mass spectrometer, 7700, Agilent Technologie, Santa Clara, CA, USA) was used for heavy metal analysis. Then, Hg was analyzed using the amalgam heat vaporization method (Hydra-C, Teledyne Instruments, OH, USA), and the sample weight was 0.02 g. Table 1 presents the conditions of each analytical instrument.

Table 1. ICP-MS and mercury analyzer operating conditions for the analysis of heavy metals
Instrument Parameter Condition
ICP-MS Plasma flow 16.5 L/min
Plasma forward power 1.35 kW
Auxiliary flow 0.6 L/min
Nebulizer flow 0.78 L/min
Replicate intergration 3
Mass range 4–260 amu
Dwell time 100 µs
Mercury analyzer Gas flow rate (O2) 350 mL/min
Drying 300°C, 20 s
Catalyst 600°C, 60 s
Decomposition 800°C, 150 s
Amalgamator 600°C, 30 s

ICP-MS, inductively coupled plasma-mass spectrometer.

Download Excel Table
Method validation

The analysis results of this study validated recovery, limit of detection (LOD), limit of quantification (LOQ), and linearity of the standard calibration curve using blank, duplicated, and spiked samples according to Environmental Protection Agency (EPA) Method 3052 (US EPA, 2014).

The recovery (%) was verified using CRM (NIST, 1566b, oyster tissue). However, Cr was not contained in CRM and was confirmed using the spiked sample. Consequently, seven samples were prepared at a concentration near LOQ. In addition, the value obtained by multiplying the standard deviation of the concentration using the test method by 3.14 was determined as LOD, and the value obtained by multiplying by 10 was determined as LOQ (NIER, 2011).

Risk assessment

The risk assessment was performed by calculating the provisional tolerable weekly intake (PTWI) from the heavy metal concentration (mg/kg, ww) of shellfish and shellfish ingestion rate (g/person/day) detected in this study, and comparing it with health based guidance value of JECFA (Table 2).

Table 2. Health based guidance value by Joint FAO/WHO Expert Committee on Food Additives
Heavy metals Health based guidance value Health based guidance value(PTWI)
Cd PTMI 25 µg/kg b.w./month 5.83 µg/kg b.w./week
Cu PMTDI 0.5 mg/kg b.w./day 3,500 µg/kg b.w./week
Zn PMTDI 0.3–1 mg/kg b.w./day 2,100–7,000 µg/kg b.w./week
Hg PTWI 4 µg/kg b.w./week 4 µg/kg b.w./week
As PTWI 15 µg/kg b.w./week PTWI 15 µg/kg b.w./week

Cd, cadmium; Cu, copper; Zn, zinc; Hg, mercury; As, arsenic; PTMI, provisional tolerable monthly intake; PMTDI, provisional maximum tolerable daily intake; PTWI, provisional tolerance weekly intake.

Download Excel Table

The PTWI of heavy metals for Korean people through shellfish consumption was calculated using the following formula and expressed as µg per kg of body weight per day (µg/kg b.w./day):

PTWI = C × I R × E D A B W

where C is the heavy metal concentration in shellfishes (mg/g, ww); IR is the shellfish ingestion rate (g/person/day) as used in national food and nutrition statistics (KHIDI, 2016) (Table 3); ED is the exposure duration (seven days); ABW is the average body weight (64.2 kg for adults) as used in Korean exposure factor (NIER, 2020).

Table 3. Ingestion rate (g/day) of shellfishes based on national food and nutrition statistics
Shellfishes Ingestion rate (g/day)
Total person average Ingestion person average
Abalone 0.4425 18.9439
Ark shell clam 0.0710 34.8498
Comb pen clam 0.0110 7.8624
Horned turban 0.1228 6.4833
Mussel 1.4541 22.5776
Oyster 1.1001 38.6825
Scallop 0.0614 32.4042
Sea squirt 0.2793 72.1370
Short neck clam 1.2516 9.8103
Surf clam 0.0006 0.6415
Download Excel Table

Results and Discussion

Method validation

In this study, the recovery rate was excluded from CRM (NIST, 1566b, oyster tissue) and Cr, consisting the same matrix as shellfish. The results of the spiked samples, showed that the recovery rate ranged from 83.8% to 102% (Table 4). The LOD and LOQ of the test method were less than 0.001 mg/kg (Table 5).

Table 4. Recovery (%) of heavy metals
Pb Cd As Cr Cu Ni Zn Ag Hg
Spiked concentration (mg/kg) 0.308 2.48 7.65 2.50 71.6 1.04 1,424 0.666 0.0371
Measured concentration (mg/kg) 0.265 2.32 7.02 2.37 61.2 0.983 1,403 0.558 0.0379
Recovery (%) 85.9 93.6 91.8 94.9 85.5 94.5 98.5 83.8 102

Pb, lead; Cd, cadmium; As, arsenic; Cr, chromium; Cu, copper; Ni, nickel; Zn, zinc; Ag, silver; Hg, mercury.

Download Excel Table
Table 5. LOD (mg/kg) and LOQ (mg/kg) of heavy metals
Pb Cd As Cr Cu Ni Zn Ag Hg
LOD (mg/kg) 0.0002 0.0002 0.0003 0.0001 0.0002 0.0003 0.0003 0.0003 0.0003
LOQ (mg/kg) 0.0005 0.0008 0.0008 0.0005 0.0006 0.0009 0.0010 0.0010 0.0008

LOD, limits of detection; LOQ, limits of quantitation; Pb, lead; Cd, cadmium; As, arsenic; Cr, chromium; Cu, copper; Ni, nickel; Zn, zinc; Ag, silver; Hg, mercury.

Download Excel Table

The coefficient of determination (R2) of the standard calibration curve obtained by analyzing the standard solution for each step using the US EPA Method 6020B (US EPA, 2014) was 0.99 or higher. Furthermore, to the standard calibration curve, the intermediate concentration was analyzed once for every ten samples immediately after the test curve through the environmental test/inspection QA/QC handbook. The concentration satisfied the range from 90% to 110%.

A blank sample was prepared using the US EPA Method 3052 (US EPA, 1996) and analyzed following the same procedure as the sample. As a result of identifying sample contamination in the experimental procedure, there was no effect on the experiment. Moreover, reproducibility (%) was calculated from a duplicate sample analysis of one sample for every 20 samples, and it was 0.25% to 16.8%. Moreover, the accuracy (%) of the experimental process was obtained by analyzing one spiked sample for every 20 samples, and it was 75.9% to 119%.

Concentration of heavy metals in shellfishes

Moisture was measured to calculate the content of heavy metals in the sample by wet weight. The moisture content of shellfish samples was abalone (71.5%–76.7%), ark shell clam (69.4%–74.9%), comb pen clam (69.0%–75.1%), horned turban (72.5%–77.9%), mussel (74.3%–81.9%), oyster (68.7%–78.8%), scallop (75.8%–82.6%), sea squirt (78.6%–82.1%), short neck clam (71.2%–83.0%), and surf clam (74.9%–79.2%).

The results of heavy metal concentration by shellfish are shown in Table 6 and Fig. 2. In the food code, the maximum levels of heavy metal concentrations for shellfish in seafood are 2, 2, and 0.5 mg/kg for Pb, Cd, and Hg, respectively. The heavy metal concentrations in all the shellfish samples analyzed were lower than the maximum levels. Among heavy metals without a maximum level, Cu (maximum of 143 mg/kg) and Zn (maximum of 466 mg/kg) in oysters were relatively high.

Table 6. Heavy metal concentrations (mg/kg, ww) in shellfishes (abalone; ark shell clam; comb pen clam, horned turban; mussel; oyster; scallop; sea squirt; short neck clam; surf clam) collected from Korean coastal areas
Shellfish species Value Heavy metal (mg/kg, ww)
Pb Cd As Cr Cu Ni Zn Ag Hg
Abalone Ave 0.0280 0.664 4.52 0.0346 2.39 0.665 18.8 0.102 0.0193
Min 0.00470 0.231 2.22 < LOQ 1.06 0.0882 8.32 0.0296 0.00548
Max 0.0741 1.36 7.89 0.0955 4.97 1.17 106 0.256 0.0582
Ark shell clam Ave 0.105 0.304 3.382 0.065 0.671 0.030 14.552 0.053 0.027
Min 0.078 0.108 1.843 0.035 0.468 0.001 12.708 0 0.015
Max 0.149 0.441 5.775 0.078 0.806 0.050 16.991 0.153 0.038
Comb pen clam Ave 0.0184 0.363 1.42 0.0262 0.291 0.00585 102 0.0379 0.0136
Min 0.00892 0.202 1.14 < LOQ 0.0636 < LOQ 58.1 < LOQ 0.0130
Max 0.0279 0.524 1.70 0.0524 0.517 0.0117 145 0.0758 0.0142
Horned turban Ave 0.0103 0.215 7.63 0.0142 4.31 0.0357 21.5 0.150 0.0171
Min 0.000750 0.0403 5.82 < LOQ 1.40 < LOQ 12.5 0.0972 0.00973
Max 0.0274 0.749 15.0 0.0392 16.1 0.393 52.6 0.261 0.0325
Mussel Ave 0.356 0.413 4.03 0.178 2.78 0.194 40.9 0.0247 0.0198
Min 0.0582 0.152 1.76 < LOQ 0.675 < LOQ 12.8 < LOQ 0.00922
Max 1.02 0.975 7.30 0.562 21.3 0.795 328 0.229 0.0436
Oyster Ave 0.353 0.820 3.25 0.257 73.4 0.260 208 0.398 0.0368
Min 0.0400 0.416 1.84 0.00505 17.0 < LOQ 41.8 0.113 0.0107
Max 0.696 1.45 5.14 0.764 143 0.752 466 1.15 0.0560
Scallop Ave 0.0223 1.09 0.880 0.0454 0.621 0.102 20.9 0.0478 0.0291
Min 0.00485 0.478 0.460 0.00451 0.393 0.0591 14.1 0.00515 0.0183
Max 0.0343 1.56 1.27 0.0890 0.915 0.131 34.1 0.103 0.0462
Sea squirt Ave 0.108 0.146 1.78 0.0267 3.18 0.0411 67.3 0.121 0.0211
Min 0.0711 0.0388 1.50 < LOQ 2.41 < LOQ 45.9 0.0414 0.00933
Max 0.178 0.246 2.18 0.101 3.90 0.294 80.6 0.199 0.0553
Short neck clam Ave 0.221 0.257 5.40 0.332 1.45 0.533 10.4 0.294 0.0382
Min 0.0544 0.0964 2.73 < LOQ 0.721 0.0806 6.69 0.155 0.0176
Max 0.588 0.510 8.77 0.820 1.96 1.46 13.5 0.920 0.174
Surf clam Ave 0.293 0.149 1.687 0.308 1.395 0.354 16.769 0.027 0.030
Min 0.054 0.181 2.322 0.032 1.067 0.356 12.548 0.038 0.022
Max 0.548 0.257 2.208 0.712 2.090 0.678 29.288 0.009 0.032

Pb, lead; Cd, cadmium; As, arsenic; Cr, chromium; Cu, copper; Ni, nickel; Zn, zinc; Ag, silver; Hg, mercury; LOQ, limits of quantitation.

Download Excel Table
fas-25-12-626-g2

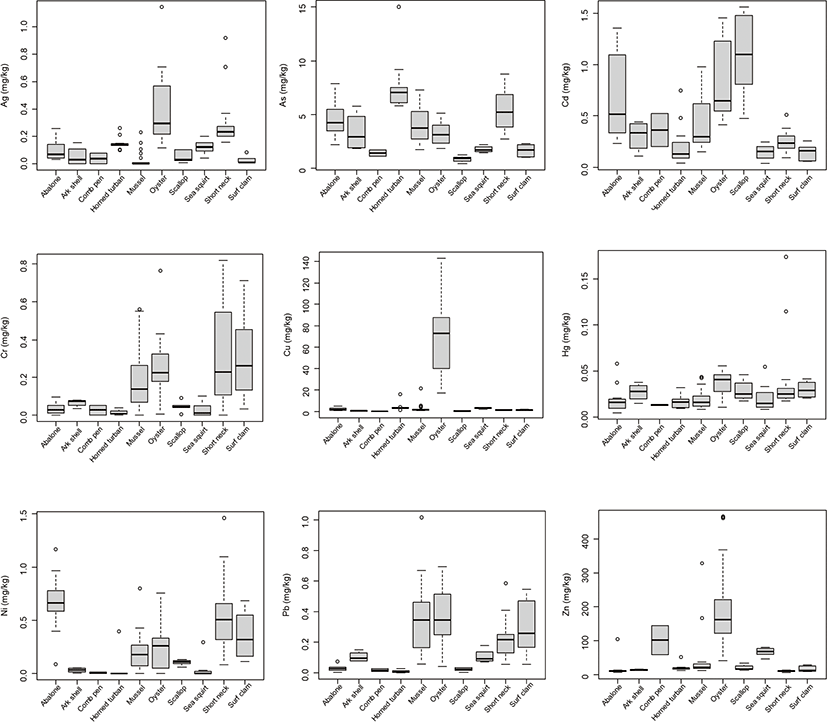

Fig. 2. Heavy metal concentrations (mg/kg, ww) in shellfishes (abalone; ark shell clam; comb pen clam, horned turban; mussel; oyster; scallop; sea squirt; short neck clam; surf clam) collected from Korean coastal area.
Download Original Figure

In particular, the concentrations of Zn and Cu are detected higher than other heavy metals. This is because these substances accumulate relatively more than other heavy metals in the human body. Biswas et al. (2013) measured heavy metals in oysters and reported that Zn or Cu, along with Fe, may accumulate preferentially in the body compared to other heavy metals.

Comparing the results of this study with the results of other studies (Table 7), Zn and Cu showed higher concentration levels than other species. The concentrations of Zn (6.69 to 466 mg/kg) and Cu (0.0636 to 143 mg/kg) were similar to or higher than those of other studies (Zn: 3.34 to 217 mg/kg; Cu: 0.9 to 137 mg/kg). Furthermore, As (0.460 to 15.0 mg/kg) was higher than the Korean results (0.095 to 3.545 mg/kg). The samples with a high concentration of As are shellfish that mainly inhabit the bottom of the sea, such as horned turnban, ark shell clam, and short neck clam, which are considered to be influenced by the environment. However, it showed a lower concentration range than the foreign results (0.216 to 22.1 mg/kg). Moreover, Cd, Cr, Ni, Pb, and Hg were similar to or lower than the Korean and foreign results. The concentration of heavy metals was compared by the region where shellfishes were collected (Table 8). Cu and Zn, which have higher concentrations than other heavy metals, showed relatively higher concentrations in Jeonnam than in other regions. Also, high concentrations of Cu and Zn were detected in Gyeonggi and Incheon. All samples with high concentrations of Cu and Zn were oyster samples. In addition, heavy metals, except Cu and Zn, were detected in a similar range; thus, there is no significant difference by region.

Table 7. Comparision of heavy metal concentrations (mg/kg, ww) of shellfishes from Korea and foreign countries
Country Heavy metal (mg/kg, ww) Reference
Pb Cd As Cr Cu Ni Zn Hg
Korea 0.761–1.708 0.168–0.247 0.682–1.645 3.914–6.484 0.785–1.998 40.36–77.98 Hwang et al., 2001
Korea 0.763–1.306 0.128–0.298 0.648–1.346 8.89–27.48 0.810–1.856 97.9–217.0 Hwang et al., 2002
Korea 0.045–0.210 0.198–2.654 ND 1.385–9.985 Kim et al., 2002
Korea Trace–0.984 0.030–0.617 Trace–0.849 0.002–0.020 Kim et al., 2003
Korea ND–1.38 ND–1.85 ND–0.19 Ham, 2002
Korea 0.5471–1.1571 0.1748–0.3529 0.4280–0.9300 0.0057–0.0203 Ha & Song, 2004
Korea 0.061–0.246 0.010–0.256 0.095–3.545 0.002–0.052 KCA, 2011
India ND 0.1 0.9 6.5 0.8 15.7 ND Sankar et al., 2006
Greece 0.68 0.34 0.26 1.4 0.34 40 0.024 Copat et al., 2013
China 0.033–0.243 0.027–0.329 0.216–0.807 1.31–9.11 3.34–17.90 0.006–0.022 Huang et al., 2007
Malaysia 0.18–0.88 0.04–5.45 0.95–22.10 0.47–3.39 0.37–2.23 Sharif et al., 2016
Egypt 0.2–17 0.04–1.7 0.9–137 7.8–41 41–192 ND–0.2 Nemr et al., 2016

Pb, lead; Cd, cadmium; As, arsenic; Cr, chromium; Cu, copper; Ni, nickel; Zn, zinc; Ag, silver; Hg, mercury; ND, not detected.

Download Excel Table
Table 8. Heavy metal concentrations (mg/kg, ww) by sampling regions from Korean coastal areas
Sampling regions Value Heavy metal (mg/kg, ww)
Pb Cd As Cr Cu Ni Zn Ag Hg
Gangwon Ave 0.120 0.836 3.22 0.0573 2.290 0.182 23.3 0.0489 0.0256
Min 0.00485 0.475 0.460 < LOQ 0.393 < LOQ 10.7 < LOQ 0.0114
Max 0.593 1.56 15.0 0.211 16.1 0.670 52.6 0.142 0.0462
Gyeongbuk Ave 0.262 0.402 3.60 0.109 2.27 0.153 65.4 0.0777 0.0210
Min 0.0711 0.0388 1.50 < LOQ 0.802 < LOQ 16.2 < LOQ 0.00933
Max 0.669 0.975 7.30 0.562 3.90 0.795 328 0.199 0.0553
Ulsan Ave 0.448 0.265 2.87 0.293 4.51 0.201 24.7 0.00470 0.0382
Min 0.433 0.264 2.70 0.285 4.46 0.185 19.6 0.00440 0.0334
Max 0.463 0.266 3.05 0.301 4.56 0.216 29.8 0.00499 0.0431
Busan Ave 0.585 0.262 3.73 0.461 2.92 0.414 26.3 0.0168 0.0235
Min 0.348 0.195 1.90 0.265 1.82 0.202 18.1 0.00225 0.0127
Max 1.02 0.316 6.07 0.712 5.51 0.678 33.4 0.0744 0.0361
Gyeongnam Ave 0.148 0.312 3.54 0.0662 9.77 0.0744 56.0 0.119 0.0136
Min 0.0582 0.108 1.76 < LOQ 0.468 < LOQ 12.8 < LOQ 0.00922
Max 0.265 0.645 5.77 0.186 55.6 0.195 185 0.675 0.0250
Jeonnam Ave 0.247 0.605 4.03 0.256 27.3 0.426 77.4 0.244 0.0276
Min 0.00845 0.0964 1.14 < LOQ 0.0636 < LOQ 6.69 < LOQ 0.00548
Max 0.696 1.45 8.77 0.820 143 0.962 466 1.15 0.0560
Jeonbuk Ave 0.163 0.133 2.66 0.191 1.25 0.302 11.0 0.128 0.0296
Min 0.0845 0.0586 1.05 0.0903 1.08 0.161 9.97 0.0105 0.0183
Max 0.262 0.207 4.90 0.343 1.66 0.461 12.4 0.253 0.0420
Chungnam Ave 0.105 0.265 4.50 0.157 1.99 0.420 11.1 0.231 0.0291
Min 0.00129 0.127 2.22 < LOQ 1.12 < LOQ 7.69 0.0310 0.0171
Max 0.387 0.480 7.34 0.806 3.62 1.17 18.2 0.709 0.0582
Gyeonggi Ave 0.0646 0.419 3.61 0.171 55.2 0.124 236 0.432 0.111
Min 0.0400 0.292 1.99 < LOQ 0.917 0.0407 10.1 0.155 0.0484
Max 0.0893 0.546 5.23 0.342 110 0.208 462 0.709 0.174
Incheon Ave 0.166 0.445 5.58 0.0983 30.5 0.727 126 0.242 0.0603
Min 0.0515 0.263 1.84 0.0113 0.721 0.0485 12.0 0.186 0.0366
Max 0.257 0.625 8.16 0.171 118 1.46 464 0.368 0.115
Jeju Ave 0.00837 0.126 6.92 0.0144 3.29 < LOQ 19.2 0.154 0.0148
Min 0.00075 0.0403 5.82 0.00130 2.76 < LOQ 15.8 0.0972 0.0097
Max 0.0172 0.305 9.18 0.0392 4.24 < LOQ 21.1 0.261 0.0284

Pb, lead; Cd, cadmium; As, arsenic; Cr, chromium; Cu, copper; Ni, nickel; Zn, zinc; Ag, silver; Hg, mercury; LOQ, limits of quantitations.

Download Excel Table

We compared Korean and foreign maximum levels with the results of this study to evaluate the safety of shellfish produced along the Korean coast. The maximum concentration of Pb detected in shellfish in this study was 1.02 mg/kg, which was lower than that of Korea (2.0 mg/kg), EU (1.5 mg/kg), and Australian (2.0 mg/kg) levels. It was also higher than the Chinese maximum level of 1.0 mg/kg. Cd was detected at a maximum of 1.56 mg/kg, which was lower than the Korean, Chinese, and Australian maximum levels of 2.0 mg/kg; however, it exceeded the EU level of 1.0 mg/kg. Hg was detected at a maximum of 0.174 mg/kg, which was lower than all national and international standards. Although all national standards were satisfied with this result, it may have been detected at a higher concentration than some foreign standards, and continuous monitoring will be required in the future.

Risk assessment by calculating human body exposure

Human exposure was calculated for a total person average for all surveyors in the National Health and Nutrition Examination Survey (KHIDI, 2016) and an ingestion person average for only the ingestion person. The results are presented in Table 9. Since the human body exposure to all surveyors is an average value including the case of not ingesting, the human body exposure to only the ingestion person was further calculated to investigate the effect on the actual ingestion person. The total amount of human body exposure for all surveyors in the National Health and Nutrition Examination Survey (KHIDI, 2016) is shown for each heavy metal substance. However, when only the ingestion person is targeted, the populations differ, and the total amount of human body exposure is calculated. Table 2 presents the health based guidance value of JECFA. Among the heavy metals investigated, PTWI of JECFA was suggested for Cd, Cu, Zn, Hg, and As. Moreover, there were no standards for other heavy metal species. Therefore, the risk assessment through comparison with PTWI could not be performed. Health based guidance value are expressed as provisional tolerable daily, weekly, or monthly intake, which were converted to weekly (Table 2) in this study. The human exposure to heavy metals calculated in this study was lower than the health based guidance value of JECFA. This means that the exposure of the human body to Cd, Cu, Zn, Hg, and As by ingestion of shellfish in Korean coastal area does not risk.

Table 9. PTWI of heavy metals from shellfish consumption by adults living in Korea
Shellfish species PTWI (µg/kg b.w./week)
Pb Cd As Cr Cu Ni Zn Ag Hg
Total person average Abalone 1.35 × 10–3 3.20 × 10–2 2.18 × 10–1 1.67 × 10–3 1.16 × 10–1 3.21 × 10–2 9.05 × 10–1 4.92 × 10–3 9.29 × 10–4
Ark shell clam 6.07 × 10–4 2.13 × 10–3 3.76 × 10–2 3.99 × 10–4 4.48 × 10–3 9.38 × 10–5 1.18 × 10–1 8.16 × 10–4 1.54 × 10–4
Comb pen clam 2.22 × 10–5 4.37 × 10–4 1.71 × 10–3 3.15 × 10–5 3.50 × 10–4 7.05 × 10–6 1.23 × 10–1 4.56 × 10–5 1.64 × 10–5
Horned turban 1.38 × 10–4 2.88 × 10–3 1.02 × 10–1 1.89 × 10–4 5.77 × 10–2 4.78 × 10–4 2.88 × 10–1 2.01 × 10–3 2.29 × 10–4
Mussel 5.65 × 10–2 6.54 × 10–2 6.39 × 10–1 2.83 × 10–2 4.40 × 10–1 3.07 × 10–2 6.49 3.92 × 10–3 3.14 × 10–3
Oyster 4.23 × 10–2 9.84 × 10–2 3.89 × 10–1 3.08 × 10–2 8.80 3.12 × 10–2 2.50 × 101 4.78 × 10–2 4.42 × 10–3
Scallop 1.49 × 10–4 7.27 × 10–3 5.89 × 10–3 3.04 × 10–4 4.16 × 10–3 6.80 × 10–4 1.40 × 10–1 3.20 × 10–4 1.95 × 10–4
Sea squirt 3.28 × 10–3 4.43 × 10–3 5.43 × 10–2 8.13 × 10–4 9.69 × 10–2 1.25 × 10–3 2.05 3.69 × 10–3 6.44 × 10–4
Short neck clam 3.02 × 10–2 3.50 × 10–2 7.37 × 10–1 4.53 × 10–2 1.98 × 10–1 7.28 × 10–2 1.41 4.01 × 10–2 5.22 × 10–3
Surf clam 1.50 × 10–5 5.69 × 10–6 8.05 × 10–5 1.42 × 10–5 6.92 × 10–5 1.20 × 10–5 7.17 × 10–4 2.36 × 10–6 2.21 × 10–6
Sum 1.35 × 10–1 2.48 × 10–1 2.18 1.08 × 10–1 9.72 1.69 × 10–1 3.65 × 101 1.04 × 10–1 1.50 × 10–2
Ingestion person average Abalone 5.77 × 10–2 1.37 9.33 7.14 × 10–2 4.95 1.37 3.88 × 101 2.11 × 10–1 3.98 × 10–2
Ark shell clam 2.98 × 10–1 1.04 1.84 × 101 1.96 × 10–1 2.20 4.61 × 10–2 5.81 × 101 4.00 × 10–1 7.55 × 10–1
Comb pen clam 1.58 × 10–2 3.11 × 10–1 1.22 2.25 × 10–2 2.49 × 10–1 5.02 × 10–3 8.73 × 101 3.25 × 10–2 1.17 × 10–2
Horned turban 7.26 × 10–3 1.52 × 10–1 5.39 1.00 × 10–2 3.05 2.53 × 10–2 1.52 × 101 1.06 × 10–1 1.21 × 10–2
Mussel 8.77 × 10–1 1.02 9.92 4.39 × 10–1 6.84 4.77 × 10–1 1.01 × 102 6.08 × 10–2 4.87 × 10–2
Oyster 1.49 3.46 1.37 × 101 1.08 3.09 × 102 1.10 8.78 × 102 1.68 1.55 × 10–1
Scallop 7.88 × 10–2 3.84 3.11 1.60 × 10–1 2.20 3.59 × 10–1 7.39 × 101 1.69 × 10–1 1.03 × 10–1
Sea squirt 8.47 × 10–1 1.15 1.40 × 101 2.10 × 10–1 2.50 × 101 3.24 × 10–1 5.30 × 102 9.53 × 10–1 1.66 × 10–1
Short neck clam 2.36 × 10–1 2.74 × 10–1 5.78 3.55 × 10–1 1.56 5.70 × 10–1 1.11 × 101 3.15 × 10–1 4.09 × 10–2
Surf clam 1.60 × 10–2 6.08 × 10–3 8.61 × 10–2 1.52 × 10–2 7.40 × 10–2 1.28 × 10–2 7.67 × 10–1 2.52 × 10–3 2.37 × 10–3

Pb, lead; Cd, cadmium; As, arsenic; Cr, chromium; Cu, copper; Ni, nickel; Zn, zinc; Ag, silver; Hg, mercury; PTWI, provisional tolerance weekly intake.

Download Excel Table

Conclusion

In this study, we analyzed heavy metals in the Korean coastal shellfish. We used this result for a safety evaluation. The heavy metals investigated in this study were Hg, Pb, Cd, As, Cr, Cu, Ni, Zn, and Ag.

Based on the analysis results, Zn and Cu were detected at an average of 56.7 mg/kg (6.70 to 466 mg/kg) and 13.2 mg/kg (0.064 to 143 mg/kg), respectively, compared with other heavy metal. Pb (average of 0.208 mg/kg, 0.000750 to 1.02 mg/kg), Cd (average of 0.454 mg/kg, 0.0388 to 1.56 mg/ kg), and Hg (average of 0.0266 mg/kg, 0.00548 to 0.174 mg/kg) were detected. Additionally, As, Cr, Ni, and Ag with average concentrations of 4.02 (0.460 to 15.0 mg/kg), 0.167 (< LOQ to 0.820 mg/kg), 0.281 (< LOQ to 1.46 mg/kg), and 0.158 mg/kg (< LOQ to 1.15 mg/kg) were detected. Region-specific, shellfish, except that Cu and Zn were detected relatively high in oysters. No significant difference was found.

Most heavy metal materials were detected with a concentration tendency similar to that of other studies. The heavy metal results of Korean coastal shellfish met all Korean maximum levels. However, Pb and Cd exceed some foreign standards as the maximum detection concentration standard, and continuous monitoring in the future is considered necessary. The human body exposure calculated using the congestion intake and heavy metal detection concentrations was less than the JECFA human safety standard, and the risk of heavy metals due to shellfish intake was at an acceptable level. The results of this survey will be used as basic data for heavy metal pollution in the Korean coastal shellfish. It can also be used as policy data for the safe seafood supply.

Competing interests

No potential conflict of interest relevant to this article was reported.

Funding sources

This work was supported by a grant from the National Institute of Fisheries Science (R2022065).

Acknowledgements

Not applicable.

Availability of data and materials

Upon reasonable request, the datasets of this study can be available from the corresponding author.

Ethics approval and consent to participate

This article does not require IRB/IACUC approval because there are no human and animal participants.

References

1.

Biswas T, Bandyopadhyay PK, Chatterjee SN. Accumulation of cadmium, copper, lead, zinc and iron in the edible oyster, Saccostrea cucullata in coastal areas of West Bengal. Afr J Biotechnol. 2013; 12:3872-7.

2.

Copat C, Arena G, Fiore M, Ledda C, Fallico R, Sciacca S, et al. Heavy metals concentrations in fish and shellfish from eastern Mediterranean Sea: consumption advisories. Food Chem Toxicol. 2013; 53:33-7

3.

Food and Agriculture Organization of the United Nations [FAO]. The State of World Fisheries and Aquaculture [Internet]. FAO 2016 [cited 2019 Oct 10]. http://www.fao.org/publications/sofia/2016/en/platform.

4.

Ha GJ, Song JY. Study on the heavy metal contents in fishes and shellfishes of Gyeongsangnam-do coastal area-part 1. J Food Hyg Saf. 2004; 19:132-9.

5.

Ham HJ. Distribution of hazardous heavy metals (Hg, Cd and Pb) in fishery product, sold at Garak Wholesale Markets in Seoul. J Food Hyg Saf. 2002; 17:146-51.

6.

Huang H, Wu JY, Wu JH. Heavy metal monitoring using bivalved shellfish from Zhejiang Coastal Waters, East China Sea. Environ Monit Assess. 2007; 129:315-20

7.

Hwang GS, Shin HS, Kim K, Yeo SK, Kim JS. Concentration and distribution of heavy metals in sediment and bivalves (Solen Strictus Gould) from tidal flats along the mid-western coast, Korea. Kor J Env Hlth Soc. 2001; 27:25-34.

8.

Hwang GS, Shin HS, Kim KJ, Yeo SK, Park SM, Lim KJ. Heavy metals in sediments and Burrowing bivalves (Sinonovacula constricta Lamarck) from tidal flats along the Saemankeum area, Korea. J Kor Soc Water Environ. 2002; 18:341-54.

9.

Joint FAO/WHO Expert Committee on Food Additives [JECFA]. Food contaminant; metals; evaluations [Internet]. WHO 2020 [cited 2022 Jun 1]]. https://apps.who.int/food-additives-contaminants-jecfa-database.

10.

Kim JH, Lim CW, Kim PJ, Park JH. Heavy metals in shellfishes around the south coast of Korea. J Food Hyg Saf. 2003; 18:125-32.

11.

Kim JJ, Kim YS, Kumar V. Heavy metal toxicity: an update of chelating therapeutic strategies. J Trace Elem Med Biol. 2019; 54:226-31

12.

Kim MK. A heavy metal concentrations in sediments and shellfish from western coast around Tae-An and Seo-San. J Korean Soc Environ Admin. 2002; 8:419-25.

13.

Korea Consumer Agency [KCA]. Report of seafood safety. Eumseong: KCA. 2011.

14.

Korea Health Industry Development Institute [KHIDI]. National food and nutrition statistics I: based on 2013 Korea national health and nutrition examination survey [Internet]. KHIDI 2016 [cited 2019 Oct 10]. http://www.khidi.or.kr/nutristat.

15.

Ministry of Food and Drug Safety [MFDS]. Sample treatment manual for heavy metal experiment in seafood. Cheongju: MFDS. 2014.

16.

Ministry of Food and Drug Safety [MFDS]. Risk assessment of cadmium. Cheongju: MFDS. 2016.

17.

Ministry of Food and Drug Safety [MFDS]. Food code. Chapter 8. General test method. Cheongju: MFDS. 2019.

18.

National Institute of Environmental Research [NIER]. NIER notificaiton no. 2020-1 [Internet]. NIER 2020 [cited 2022 Jun 1]]. http://www.nier.go.kr/NIER/cop/bbs/selectNoLoginBoardList.do?bbsld=BBSMSTR_000000000031&menuNo=13001.

19.

National Institute of Environmental Research [NIER]. QA and QC guideline for environmental test. 2nd ed Incheon: NIER. 2011.

20.

Nemr AE, El-Said GF, Ragab S, Khaled A, El-Sikaily A. The distribution, contamination and risk assessment of heavy metals in sediment and shellfish from the Red Sea coast, Egypt. Chemosphere. 2016; 165:369-80

21.

Sankar TV, Zynudheen AA, Anandan R, Viswanathan Nair PG. Distribution of organochlorine pesticides and heavy metal residues in fish and shellfish from Calicut region, Kerala, India. Chemosphere. 2006; 65:583-90

22.

Sharif R, Chong E, Meng CK. Human health risk assessment of heavy metals in shellfish from Kudat, Sabah. Malays J Nutr. 2016; 22:301-5.

23.

United States Environmental Protection Agency [US EPA]. EPA method 6020B (SW-846): inductively coupled plasma-mass spectrometry [Internet]. EPA 2014 [cited 2022 Jun 1]]. https://www.epa.gov/esam/epa-method-6020b-sw-846-inductively-coupled-plasma-mass-spectrometry.

24.

US Environmental Protection Agency [US EPA]. SW-846 test method 3052: microwave assisted acid digestion of siliceous and organically based matrices [Internet]. EPA 1996 [cited 2022 Jun 1]. https://www.epa.gov/hw-sw846/sw-846-test-method-3052-microwave-assisted-acid-digestion-siliceous-and-organically-based.

25.

Viarengo A, Canesi L. Mussels as biological indicators of pollution. Aquaculture. 1991; 94:225-43
